Methods for Reducing Motor Torque
2. Voltage Reduction
One of the simplest and most common ways to reduce motor torque is by lowering the voltage supplied to the motor. Remember that "voltage applied" thing we talked about earlier? Well, it directly impacts torque. Reduce the voltage, and you reduce the torque — generally, torque is proportional to the square of the voltage. Think of it like dimming the lights. Less power in, less power out, less twisting force.
However, a word of caution: simply reducing the voltage can also reduce the motor's speed. This might be exactly what you want, but it's important to consider the trade-offs. If you need to maintain the same speed while reducing torque, you might need more sophisticated control methods, which we'll get to later. Its a bit like trying to drive slower in a car without shifting gears; eventually, youll stall.
The most effective way to control voltage is through a variable voltage transformer (variac) or, even better, a motor speed controller. These devices allow you to precisely adjust the voltage and, therefore, the torque output. They provide a smooth, controlled reduction rather than a sudden drop, which is much better for delicate applications. Plus, they offer the flexibility to increase or decrease torque as needed, which is super handy.
While this method is straightforward, remember to check your motor's specifications before lowering the voltage. Running a motor at significantly reduced voltage for extended periods can cause overheating, especially if it's under load. Always ensure you're operating within the motor's safe operating range. Think of it as feeding your car the wrong type of fuel; it might run for a bit, but eventually, it's going to cause problems.
3. Gearboxes and Pulley Systems
Another method to consider is using gearboxes or pulley systems. These mechanical devices can reduce the torque delivered to the load while increasing the speed, or vice versa. It's like using a longer wrench to loosen a stubborn bolt; you apply less force, but the leverage does the work. Think of it as a torque transformer.

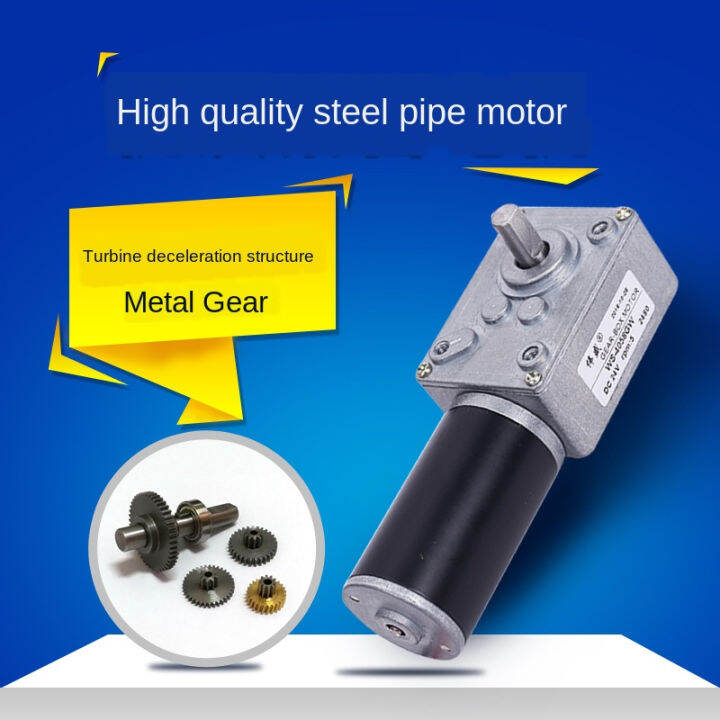

A gearbox, for instance, consists of gears with different sizes and numbers of teeth. By using a gearbox with a reduction ratio (e.g., 2:1 or 10:1), you can reduce the torque applied to the output shaft by that same ratio. So, a motor with 10 Nm of torque connected to a 2:1 gearbox would deliver 5 Nm of torque at the output. But remember, this usually comes with a corresponding increase in speed, depending on the configuration. A good illustration is bicycle gears - going uphill, you use a lower gear for more torque (easier pedaling), but go slower.
Pulley systems operate on a similar principle. By using pulleys of different diameters connected by a belt, you can change the torque and speed ratio. The smaller the driven pulley relative to the driving pulley, the lower the torque and higher the speed. These systems can be highly customizable and are often used in applications where precise speed and torque control are required.
When choosing a gearbox or pulley system, consider factors like efficiency, backlash (play in the gears), and load capacity. Inefficient systems can waste energy and generate heat, while excessive backlash can reduce the precision of your system. Also, ensure that the system is strong enough to handle the expected loads without failing. A well-chosen mechanical system can be a reliable and effective way to reduce motor torque without significantly impacting other performance parameters.
4. Current Limiting
Current limiting is a more sophisticated method of controlling motor torque. Since torque is directly related to the current flowing through the motor windings, limiting the current effectively limits the torque. This is often achieved using electronic motor controllers that actively monitor and regulate the current supply.
Unlike voltage reduction, current limiting allows you to control the torque independently of the motor's speed. This is particularly useful in applications where you need to maintain a constant speed while preventing the motor from exceeding a certain torque limit. Think of it as cruise control for torque. It's perfect for applications like tension control in winding machines or force control in robotic manipulators.
Implementing current limiting typically requires a closed-loop control system. This involves sensing the motor current, comparing it to a desired setpoint, and adjusting the voltage or pulse-width modulation (PWM) signal to the motor to maintain the desired current level. While this approach is more complex than simple voltage reduction, it offers much greater precision and control.
Keep in mind that current limiting can also generate heat in the motor and the controller. It's crucial to ensure that both components are adequately cooled and protected from overcurrent conditions. Regularly monitoring the temperature and adjusting the current limit accordingly can prevent damage and ensure reliable operation. After all, burnt electronics don't contribute to successful projects!
5. Adjusting Motor Parameters (If Possible)
In some situations, you might have the option to adjust the motor's internal parameters to reduce its torque. This is usually only possible with specialized motors or with the help of an experienced motor technician, but it's worth mentioning as a potential solution.
For example, in some DC motors, it might be possible to adjust the field winding current or the number of turns in the armature winding. Reducing the field current weakens the magnetic field, which in turn reduces the motor's torque constant (the relationship between current and torque). Similarly, reducing the number of turns in the armature winding decreases the back EMF (electromotive force) of the motor, leading to lower torque.
However, these adjustments are not without consequences. Changing the motor's parameters can also affect its speed, efficiency, and overall performance characteristics. It's crucial to carefully analyze the trade-offs and ensure that the modifications do not compromise the motor's suitability for the intended application. This approach should only be considered if you have a deep understanding of motor theory and the potential impacts of the changes.
Before making any adjustments, consult the motor's datasheet or seek advice from the manufacturer. They can provide valuable insights into the motor's capabilities and limitations and help you avoid damaging the motor or creating an unsafe operating condition. Messing with motor internals without proper knowledge is like performing surgery on yourself; it's generally a bad idea.
